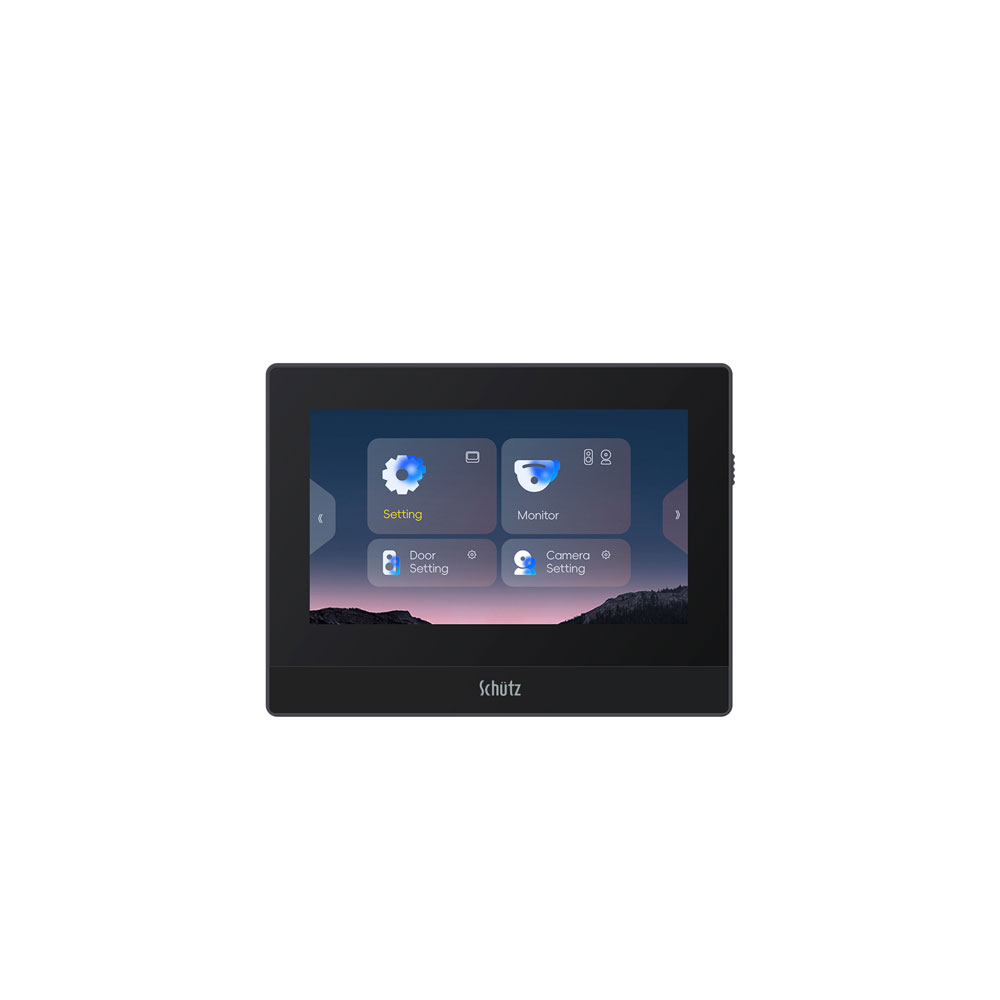

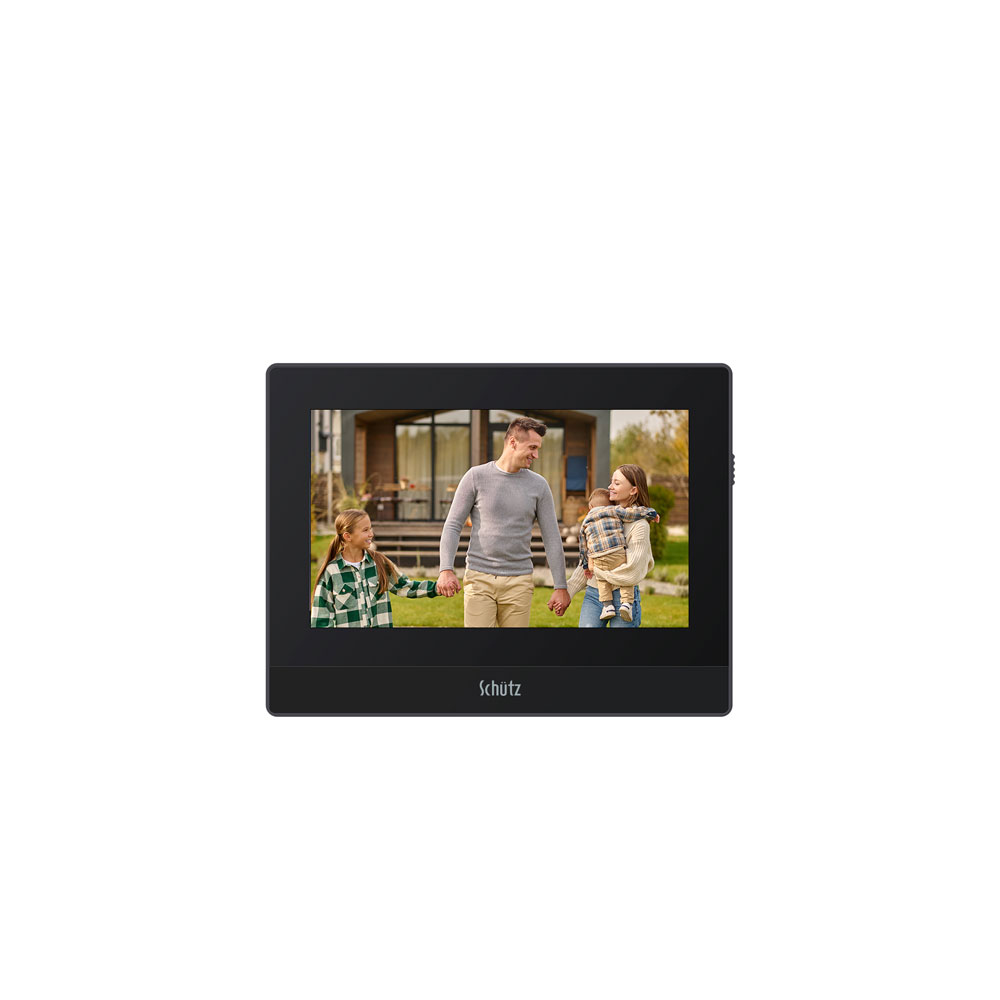

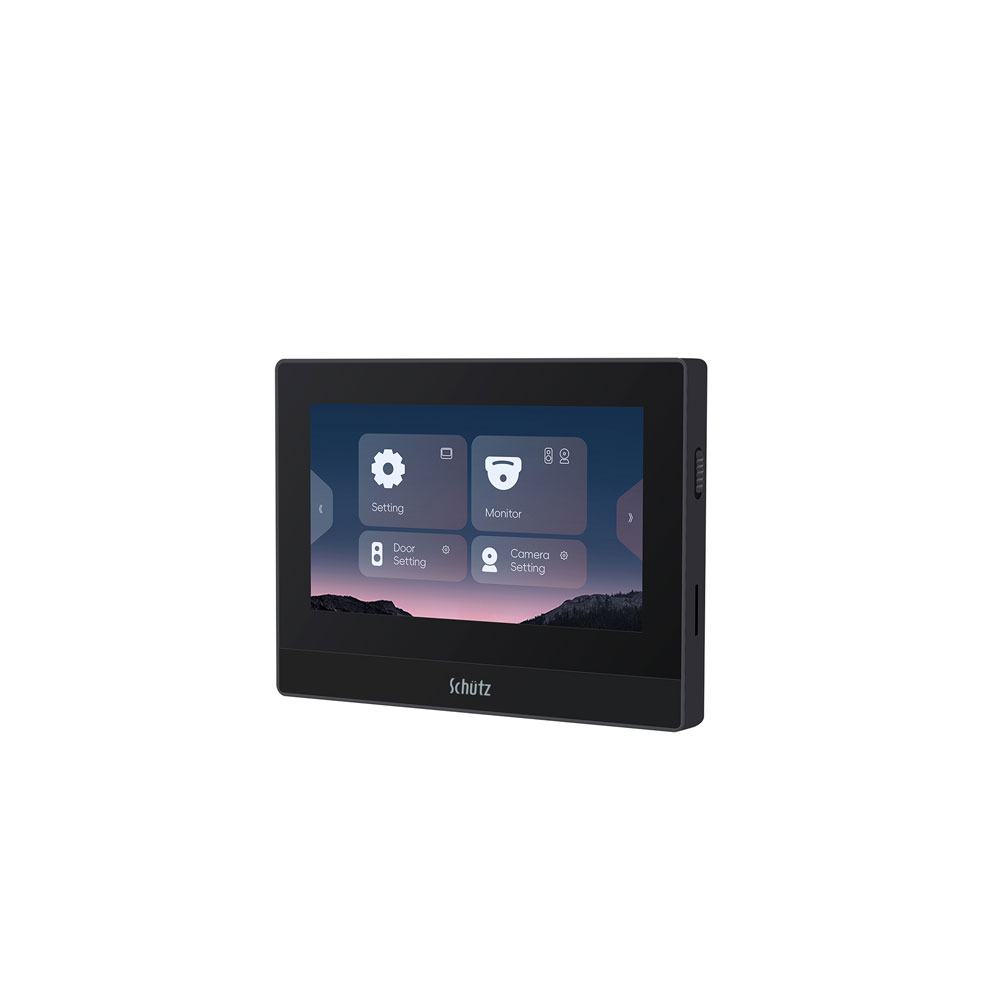

VGATE-M5-V4
TCP/IP video door phone intercom system
The VGATE-M5-V4 is a powerful and elegant IP video door phone indoor monitor designed for modern smart homes, offices, and multi-apartment buildings. Combining advanced TCP/IP technology, a high-definition touchscreen, and intelligent security features, it delivers a seamless communication and access control experience that enhances both safety and convenience.
The device features a 4.3-inch IPS capacitive touchscreen with a crisp 1080P resolution, providing clear, detailed images and wide viewing angles. The responsive touch interface ensures easy navigation, making daily use intuitive for all users.

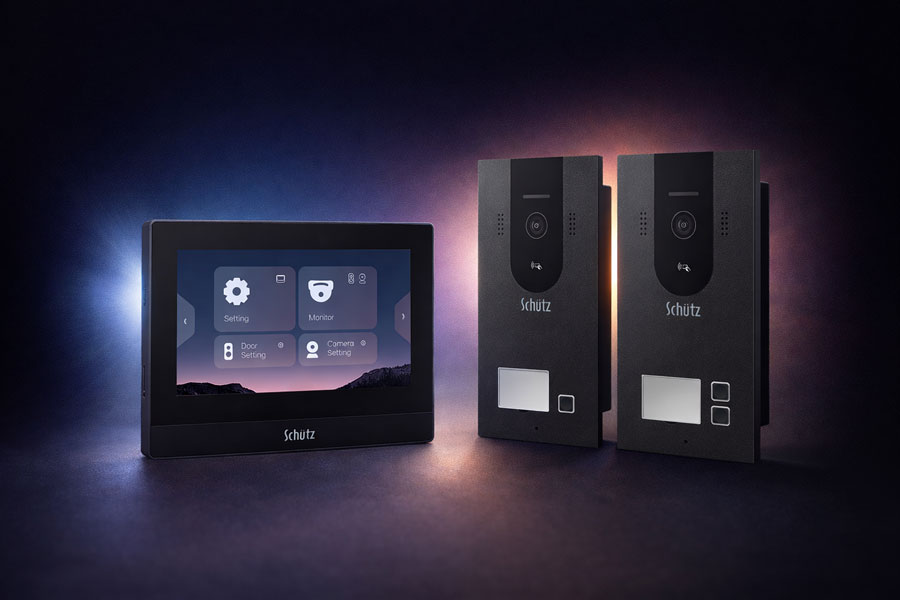

The VGATE-M5-V4 is built to scale with your project. It supports up to 4 door stations, 4 CCTV cameras, and 4 indoor monitors, making it ideal for villas, apartment buildings, offices, and mixed-use developments. Access control functions, including door unlocking, can be conveniently configured directly from the indoor monitor, eliminating the need for additional control hardware.
For enhanced comfort and privacy, the VGATE-M5-V4 includes a customizable Do Not Disturb (DND) mode, enabling users to mute calls during specific hours such as nighttime or meetings. This thoughtful feature makes it especially attractive for residential users who value both security and peace of mind.
Installation is fast and efficient thanks to standard PoE (Power over Ethernet) support, which delivers power and data through a single network cable.
Housed in a sleek and durable ABS plastic enclosure, the VGATE-M5-V4 features a modern design that fits perfectly into contemporary interiors. Its compact size and surface-mount installation allow for clean, professional integration on any wall.
Reliable, intelligent, and easy to use, the VGATE-M5-V4 is the ideal indoor monitor for anyone seeking a professional, future-ready video intercom solution that combines security, smart connectivity, and modern design.
| Feature | Details |
|---|---|
| System | TCP/IP system, Embedded Linux OS |
| Processor | Embedded ARM Micro Processor |
| Memory | ROM 1 GB / RAM 2 GB |
| Display | 4.3″ IPS capacitive Glass touchscreen |
| Screen Resolution | 1080P |
| Audio | Built-in microphone & speaker, two-way talk |
| Audio Compression | G.711a / G.711u |
| Video | Snapshot & video recording |
| Video Compression | H.264 |
| Detection | Intelligent human motion detection |
| Storage | MicroSD card, up to 1 TB |
| Application | Remote control via Tuya App |
| System Capacity | Up to 4 door stations, 4 CCTV cameras, 4 indoor monitors |
| Do Not Disturb | Customizable DND mode |
| Power Supply | Standard PoE |
| Power Consumption | Standby ≤ 2.8 W / Working ≤ 5 W |
| Operating Temperature | -10 °C to +50 °C |
| Relative Humidity | 20% – 95% RH |
| Material | ABS plastic |
| Installation | Surface mounting |
| Dimensions | 118 × 89 × 23 mm |
| Languages | English, Russian, Ukrainian, German, Arabic (customizable) |
